Welcome to HideIPVPN. This tutorial will guide how to setup OpenVPN connection using you DD-WRT router.

Important: We presume that you already flashed your router with DD-WRT firmware and your DD-WRT router local IP address is 192.168.1.1 and your first router has different LAN subnet, for example 192.168.0.1. When you connect to this router via wi-fi you have internet, we also presume that you have already tested VPN on your PC/Mac to ensure that your network configuration and ISP allow OpenVPN connection.

Important: OpenVPN can NOT be used concurrently with PPPoE or Static IP if you use DD-WRT flashed router as main router. We recommend you to use DD-WRT flashed router as the second one.

Connect to the router using either an Ethernet cable, or by joining the wireless network ‘dd-wrt’. Open a web browser, and load the following address: http://192.168.1.1 Note, first set your network connection to obtain IP address automatically if you connect to your router via Ethernet.

Configure your DD-WRT router to share your regular internet connection.

1. Go to Security (1) and select Firewall (2).  Make sure SPI Firewall is enabled (3).

1



2. Below this page you need to enable Log (4) and set Log Level: High (5). Once you’re done click on Save (6), then Apply Settings (7).

2

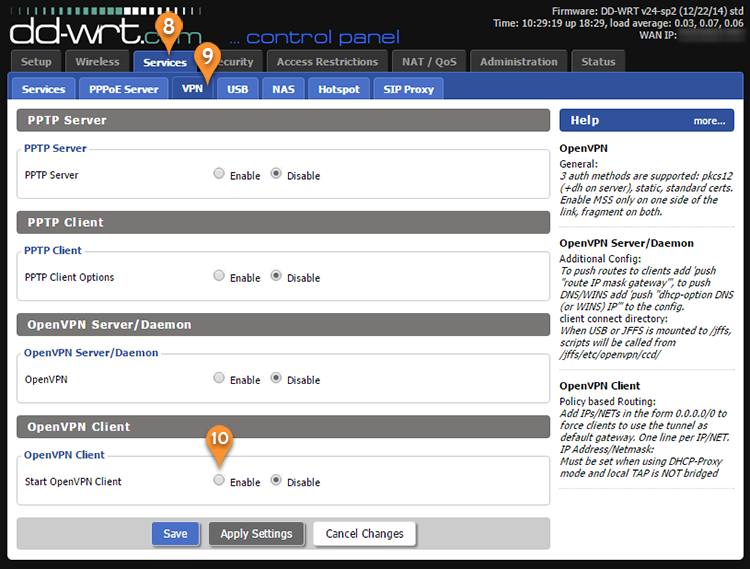

3. Go to Services (8), select VPN tab (9) and enable OpenVPN Client (10).

3

4. Setup the client as presented below:

Server IP/Name:  HideIPVPN server or IP (for example us5.hideipvpn.com)

Port: 1194 ( or one of the following – 443, 992, 2460, 3389, 5005, 5555 )

Tunnel Device: TUN

Tunnel Porotocol: UDP

Encryption Cypher: AES-128-CBC

Hash Algorithm: SHA1

User Pass Authentication: Enable

Advanced options: Enable

TLS Cipher: None

LZO Compression: Disabled

Nat: Enable

Firewall Protection: Enable

4



5. Download OpenVPN configs from Client Area

5



6. Uzip the archive file. Choose the .ovpn file of the server you need to connect and open it with Notepad or any other text editor. In text extract these 3 certificates in order as presented in file : <Ca>(11) , <Cert> (12), <Key> (13)

6

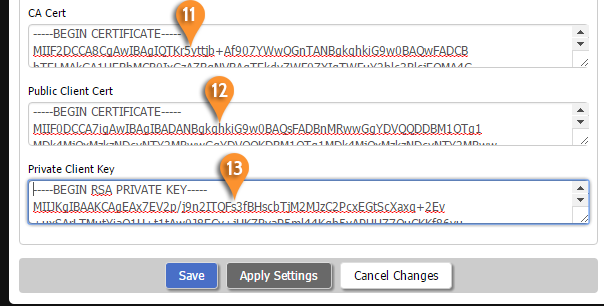

7. Copy/paste this info as presented below

<ca> to Ca Cert (11)

<cert> to Public Client Cert (12)

<key> to Private Client Key (13)

once you’re done click on Save then Apply Settings

7

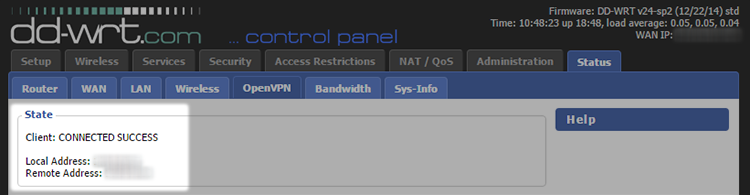

8. Go to Status tab and select OpenVPN. You should get the message “Client: CONNECTED SUCCESS”

8

Now you’re done! Enjoy VPN with HideIPVPN!
