HowTo: Windows 7 L2TP/IPSec VPN Setup Tutorial

Last updated on January 24th, 2018 in Setup

Welcome to HideIPVPN. Here you will find how to setup L2TP/IPsec VPN on Windows 7. It’s pretty easy and this tutorial will help you.

Important:For an easier and faster connection we recommend you to use our free HideIPVPN software. Also check how to setup an use our VPN and Smart DNS software for Windows.  But if you want to setup it manually, just follow the instructions below.

Note:Before start, you need to have an active VPN account, if you do not have one follow the link –

Get FREE VPN trial account!

Steps to setup L2TP/IPsec VPN on Windows 7

Open Network Connections

First, go to the Start Menu and select Control Panel.

IpSec Windows 7

Next, click on the “Network and Internet” control panel, which is circled in red below.

IpSec Setup Windows 7

Next, click on “View network status and tasks.”


Setup a Connection

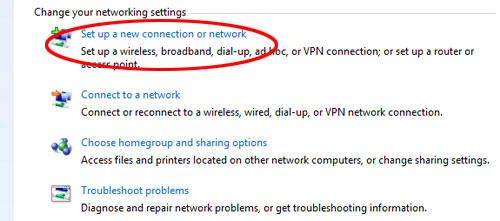

Then click Set up a connection or network.


The Set up a connection or a network window will now be displayed. Click on Connect to a workplace. Then click Next in the lower right hand section of the window.


How Do You Want To Connect?

Next, you will be asked how you want to connect. Click Use my Internet connection (VPN).


That will bring up the following screen in which you can type in the IP address of the VPN and what you want to name the connection.

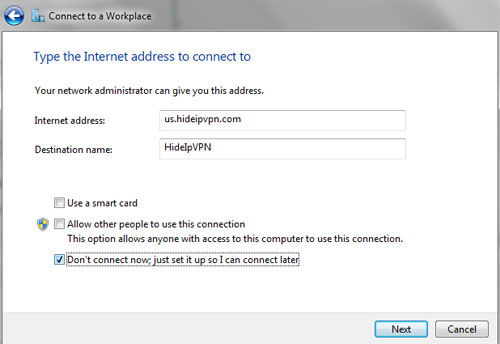

Set Up The Internet Address

On this screen, type the name or the IP address of a HideIpVPN server. You have to check the email you have received when you have paid for the HideIpVPN account. You will find there the available servers.

In the Destination name: field, type in what you want to call the network. A good name for this is HideIPVPN. Then click Next.


Important! If you are located in a country where our site is blocked (like China) make sure your read the following post: Special VPN Settings For Chinese Users.

Fill In Your Username and Password

Next, type in your HideIPVPN username and password. Check the Remember this password box.


Click Connect. If you see the message You are connected it means that you have suucesfully setup the HideIPVPN conection.

Connection Ready

You should see this screen next. Click the “Close” button to return to the “Network and Internet” screen.


In the Connect to a network screen, you should see the HideIpVPN connection that you have just set up.


Right–click on the HideIpVPN connection document, and choose Properties from the menu.

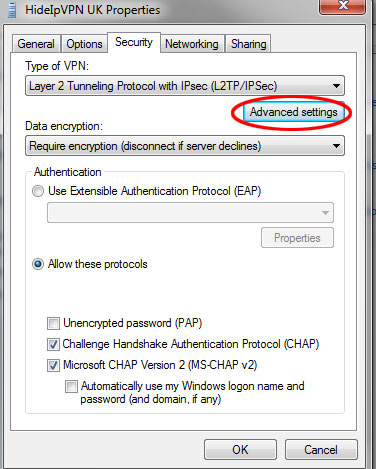

In the HideIpVPN Properties, click on the Type of VPN pop–up menu (hilighted in red) and select L2TP/IPsec.

HideIpVPN IpSec Vista

Next, click on the Advanced Settings… button (hilighted in red).


In the IPsec Settings dialog, click the radio button labelled Use preshared key for authentication (hilighted in green). Then type hideipvpn into the textbox labelled Key (hilighted in blue). Then click the OK button (hilighted in red).


You’re finished! Click the OK button to save your settings.

To connect just simply double–click on the connection and click the Connect button. Enter your username and password, in case it’s needed! To disconnect from a VPN connection, right-click on the connection icon and then click Disconnect.

Important! If you have problems with DNS resolution please also read this post: DNS Issues On PPTP VPN Connect.
